Panelboards are used to safely distribute electricity throughout commercial and industrial facilities. A panelboard is a important component of an electrical distribution system which divides an electrical power feed into branch circuits, while providing a protective circuit breaker or fuse for each circuit, in a common enclosure. This also makes sure that none of the devices suffer from the effects of over currents or short circuits. The UP range of distribution boards are elegant when it comes to their looks. They fit in perfectly with the interiors of your homes, adding to the aesthetics. Available in different colors, the designer DBs serve a dual purpose. They not only save you from the harmful effects of current but also make your walls magnificent. A panelboard services to protect branch circuits from overloads and short circuits. Available in different colors, the designer DBs serve a dual purpose. They not only save you from the harmful effects of current but also make your walls magnificent.

Material

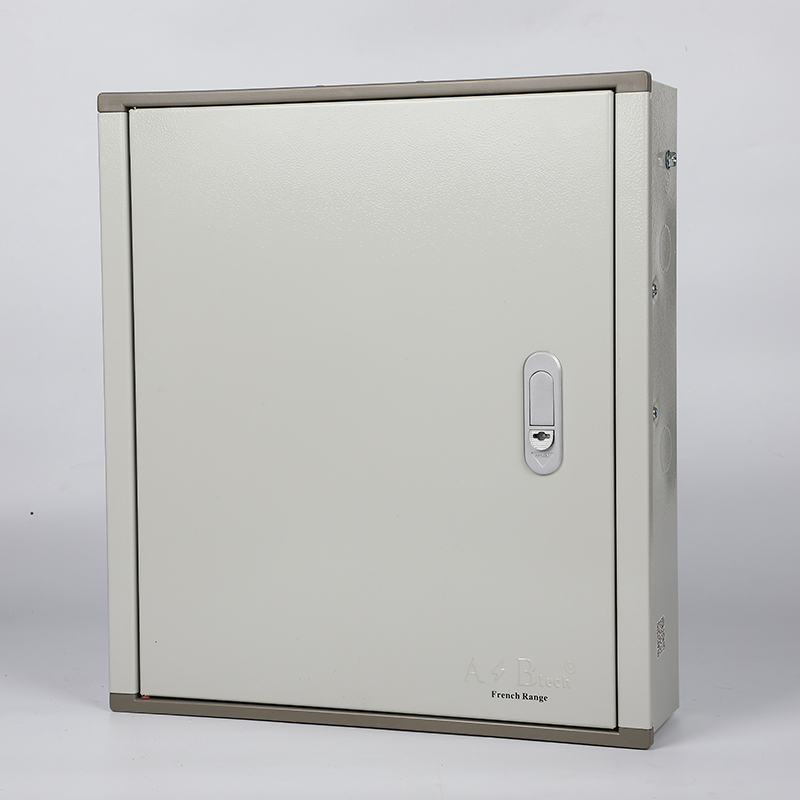

The UDB-H distribution boards are available with a fixed load or split load pan assembly. They have a fully flush fitted metal door with a "slam" type catch. All boards are delivered with both Neutral and Earth bars fitted and the neutral is designed to wrap around the incoming device to ensure that extra wiring space is available for the outgoing devices.

The incoming device must be selected and fitted by the installer. The top and bottom gland plates are removable and also include knock-outs to suit standard size conduits. The pan assembly is fully shrouded and the busbars are one piece in design, this ensures that no "hot spots" can occur as there are no mechanical joints. The boards confirm to BSEN 60439-1 & 3.

Specifications

Overall and installation dimensions

Product Details
